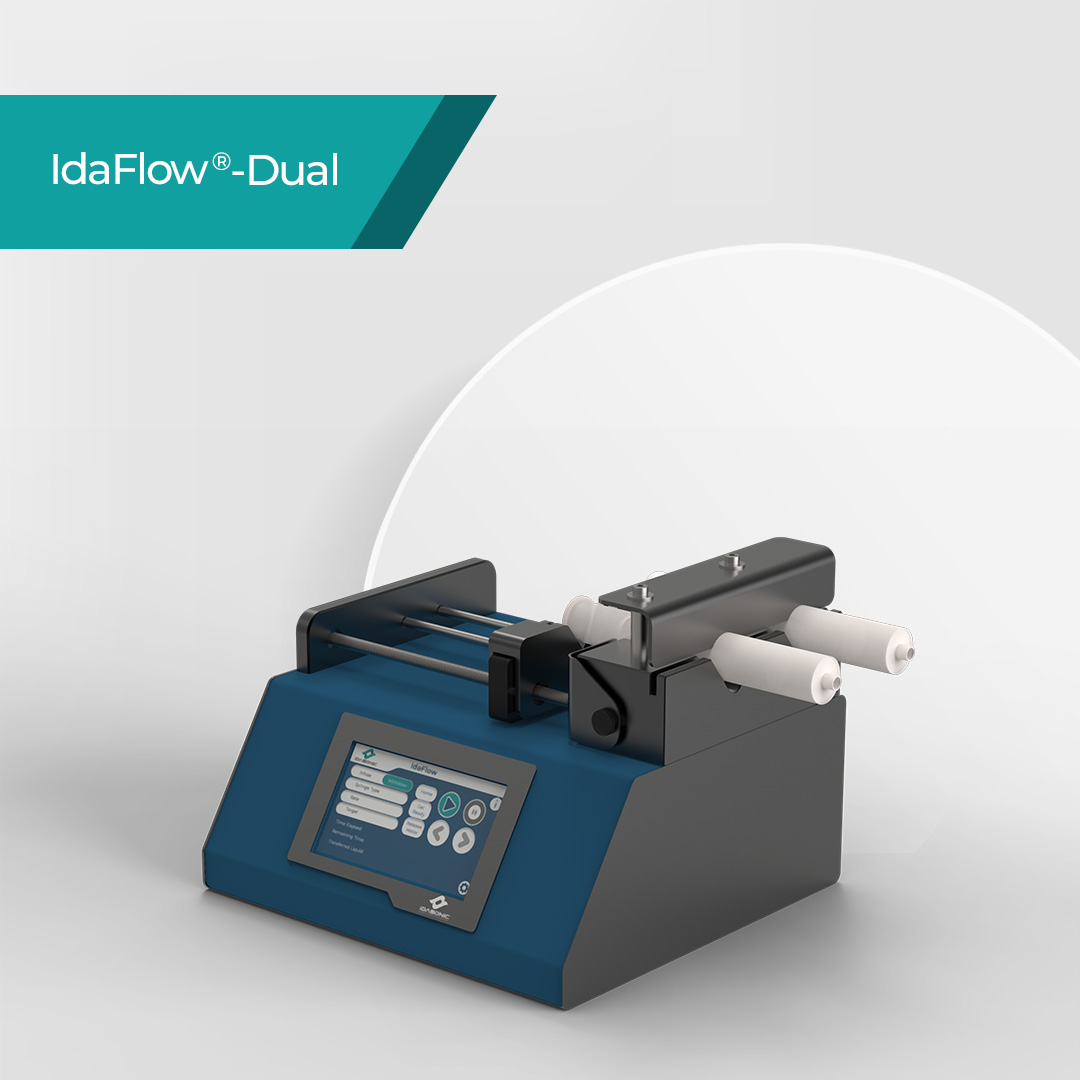

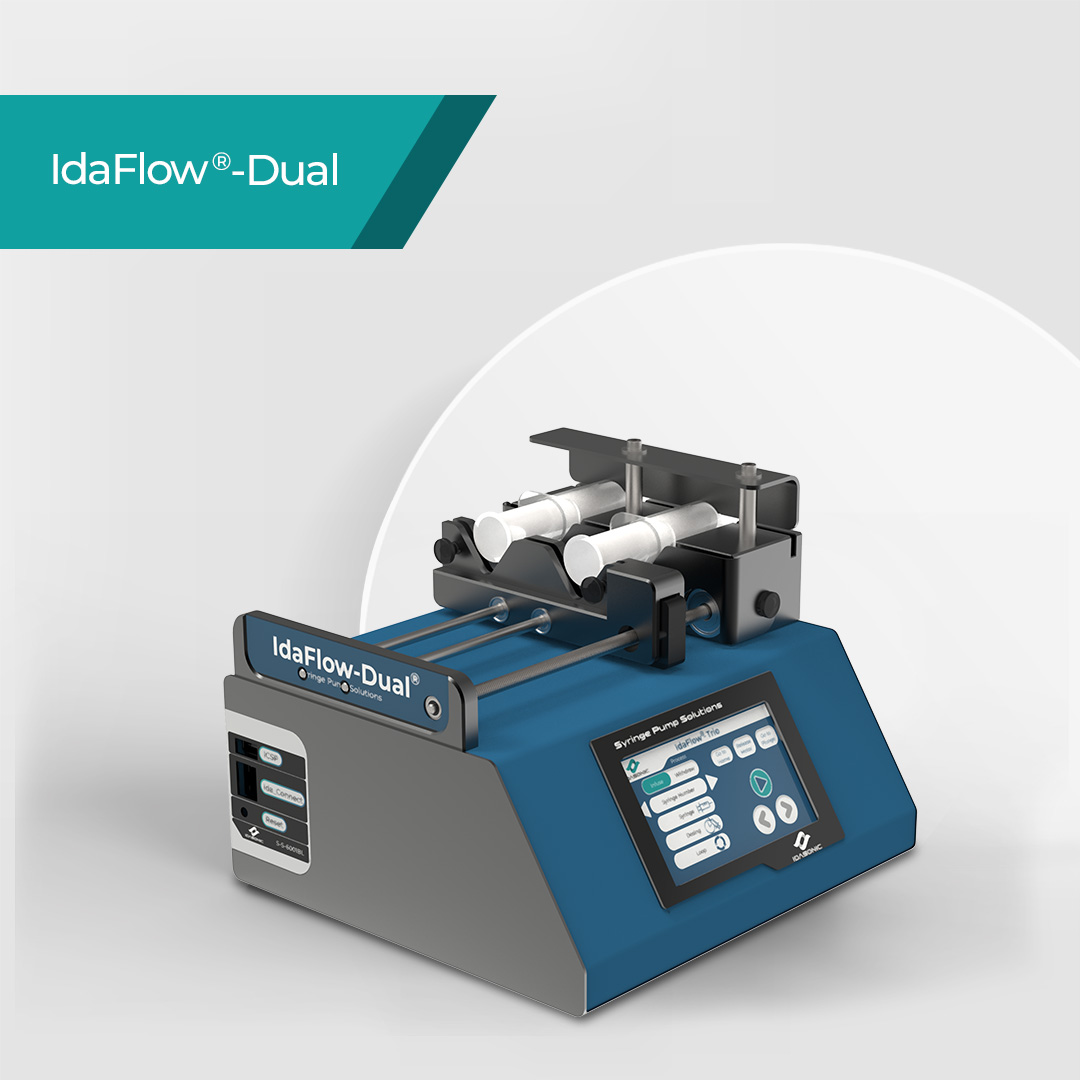

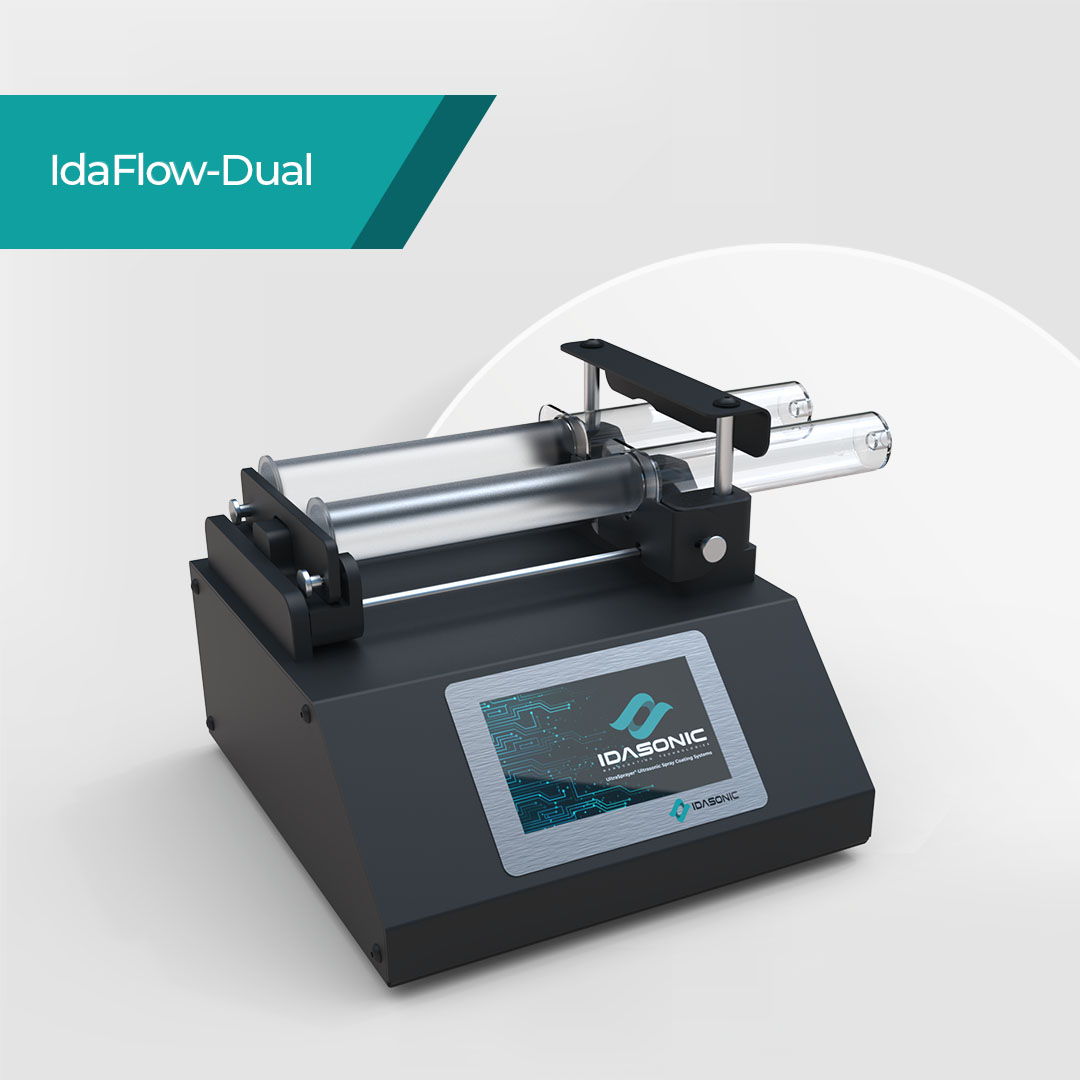

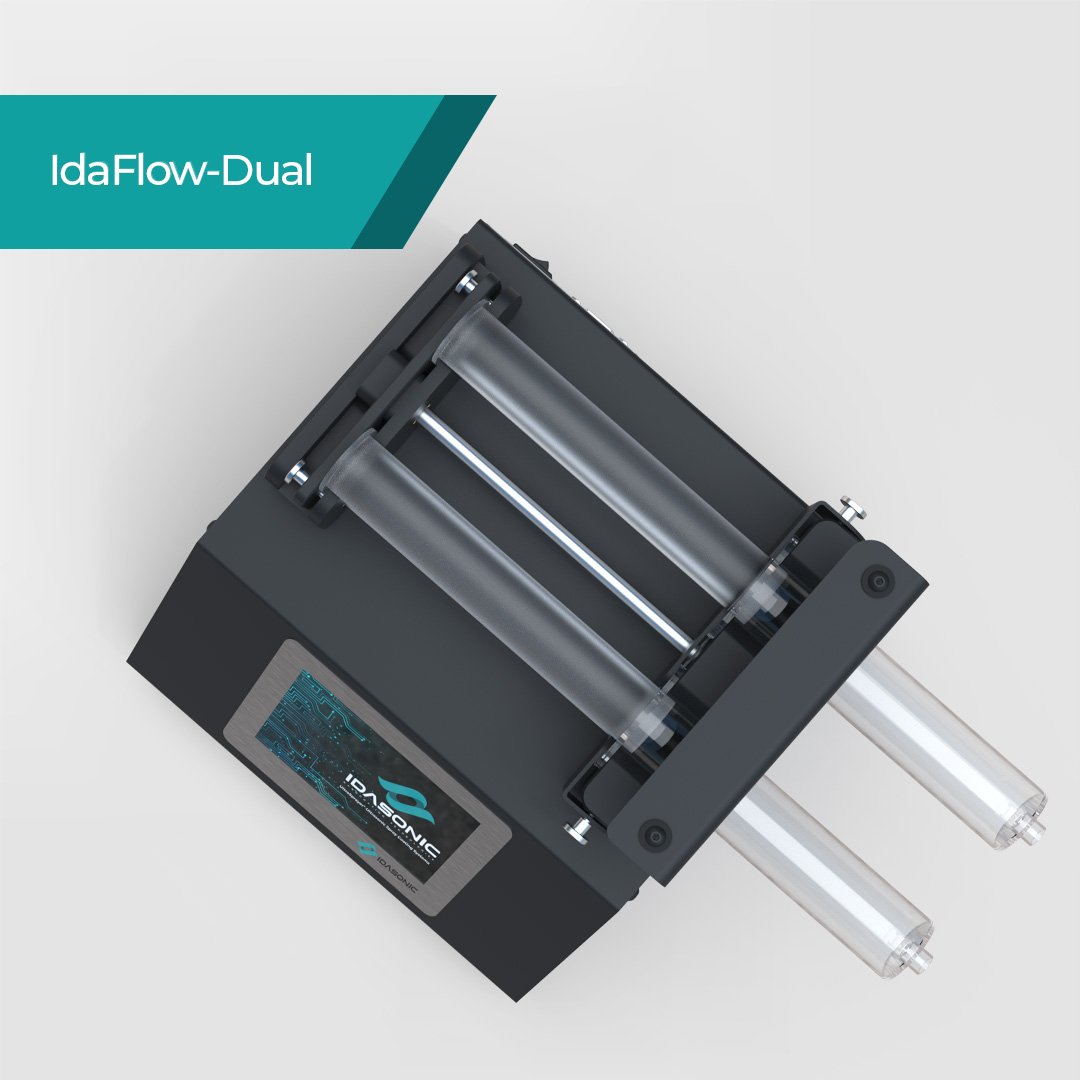

IdaFlow® -Dual

The IdaFlow®-Dual model features a design with two-channels, allowing users to simultaneously control different liquids and improve process efficiency. Specifically designed to offer excellent control and reliable performance in liquid delivery, the IdaFlow®-Dual has a wide range of uses from laboratories to industrial plants. This innovative product provides accurate dosing and flow control with syringe capacities ranging from 1 ml to 60 ml, as well as Stepper motor technology and microcontroller-based design. IdaFlow®-Dual‘s user-friendly interface and compact design increase your work efficiency. Its 4.3-inch capacitive HDMI LCD display and easy-to-understand GUI make operation extremely simple. In addition, the ability to store 50 different recipes in memory makes repetitive operations quick and easy. Our expert sales team is here to offer customized solutions for your needs. Contact us and start exploring the advantages of the IdaFlow®-Dual model!

Technical Specifications

SYRINGES

2 syringes capasity

Glass, plastic, and steel syringes can be attached.

Min size: BD 1 ml

Max size: BD 60 ml

50 syringes can be saved as recipes.

FLOW RATE

Min: 12,4 pl/min  (BD 1 ml)

Motor Type: Stepper Motor

Microcontroller with Microstep Drive

Step Resolution (Travel/Microstep) 357 nm/μstep

STEP RATE

Min: 10 sec/μstep

Max: 200 μsec/μstep

LINEAR SPEEDMin: 0,558 μm/min
INTERFACE

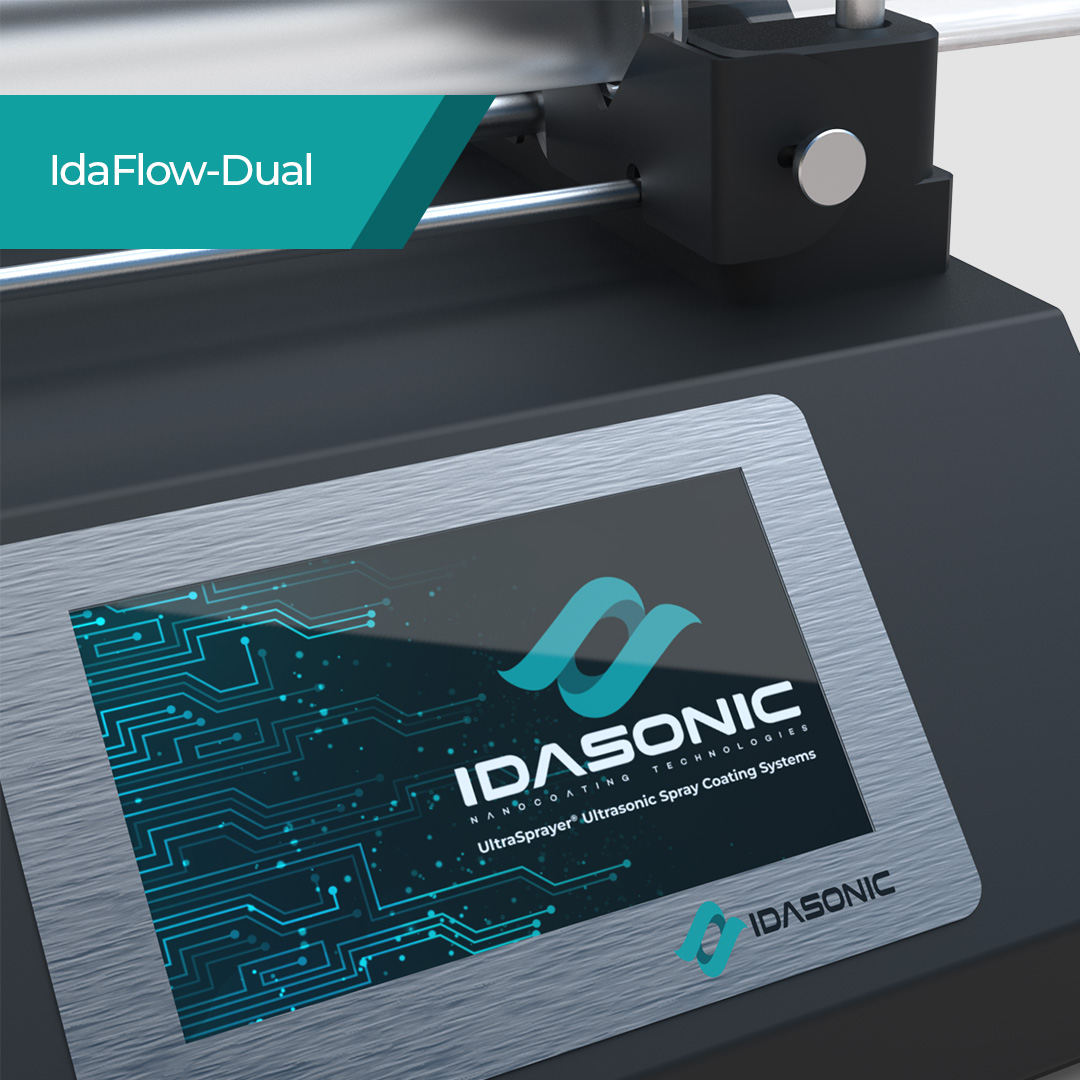

4.3″ Capasitve HDMI LCD

User friendly GUI

1x IdaConnect® Interface

GENERAL

230x230x180

Weight: 3 kg

Operation Temperature up to 80°C

110V or 220V AC compatible

CERTIFICATIONCE, ISO 9001:2015
